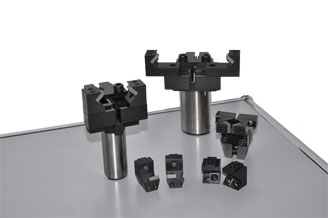

Bar Puller

A simple to operate economical alternative to expensive bar feeds
Simple and quick setting process
One holder for standard sizes VDI 30, 40, 50 and 60

Bar puller with shafts according to DIN 69 880 (part 3) as well as with cylindrical shafts with surface. On the basic body there are two adjustable, interchangeable elements - spring loaded against each other, which are provided with two hardmetal cutting plates. The two elements which run in a slot are adjusted slightly below the rod diameter. The revolver is brought into position by the side of the rod with the Z-axis. After that the bar puller tool is brought to a cutting position with the X-axis.
